Panduit - Panduit Opti-Core

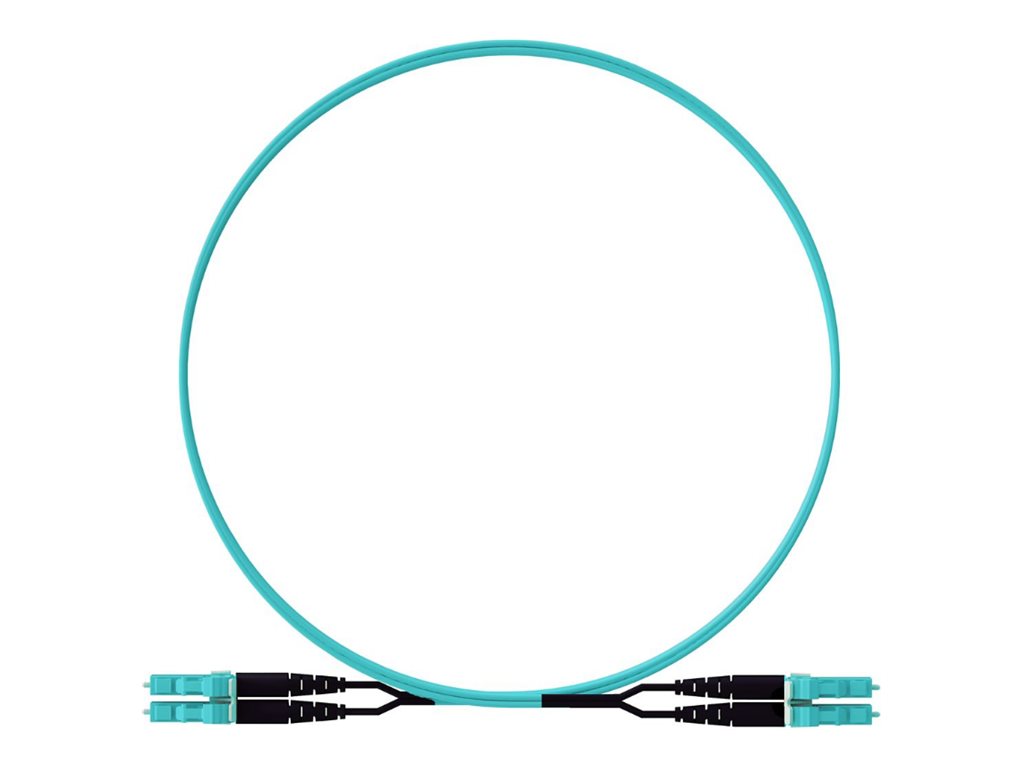

Patch cable - LC Duplex single-mode (M) to LC Duplex single-mode (M) - 0.1 in - duplex - OS1/OS2 - OFNP - plenum - aqua
Panduit
F92EPLHLHSHM002
N/A
N/A
N/A
New
Promotional Price
$4.68
04/29/2025
1
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Panduit Opti-Core patch cable - aqua |
| Type | Patch cable - OS1/OS2 - OFNP |
| Technology | Duplex |
| Type of Fiber Optics | Singlemode |
| Features | Plenum, 0.35 dB insertion loss, 55 dB return loss |
| Diameter | 0.1 in |
| Connector | 2 x LC Duplex single-mode - male |
| Connector (Second End) | 2 x LC Duplex single-mode - male |
| Color | Aqua |
| General | |
| Network Cable Type | Patch cable - OS1/OS2 - OFNP |
| Technology | Duplex |
| Type of Fiber Optics | Singlemode |
| Fiber Qty | 2 |
| Features | Plenum, 0.35 dB insertion loss, 55 dB return loss |
| Diameter | 0.1 in |
| Color | Aqua |
| Miscellaneous | |
| Compliant Standards | RoHS, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-568.3-D, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | 2 x LC Duplex single-mode - male |
| Connector (Second End) | 2 x LC Duplex single-mode - male |
