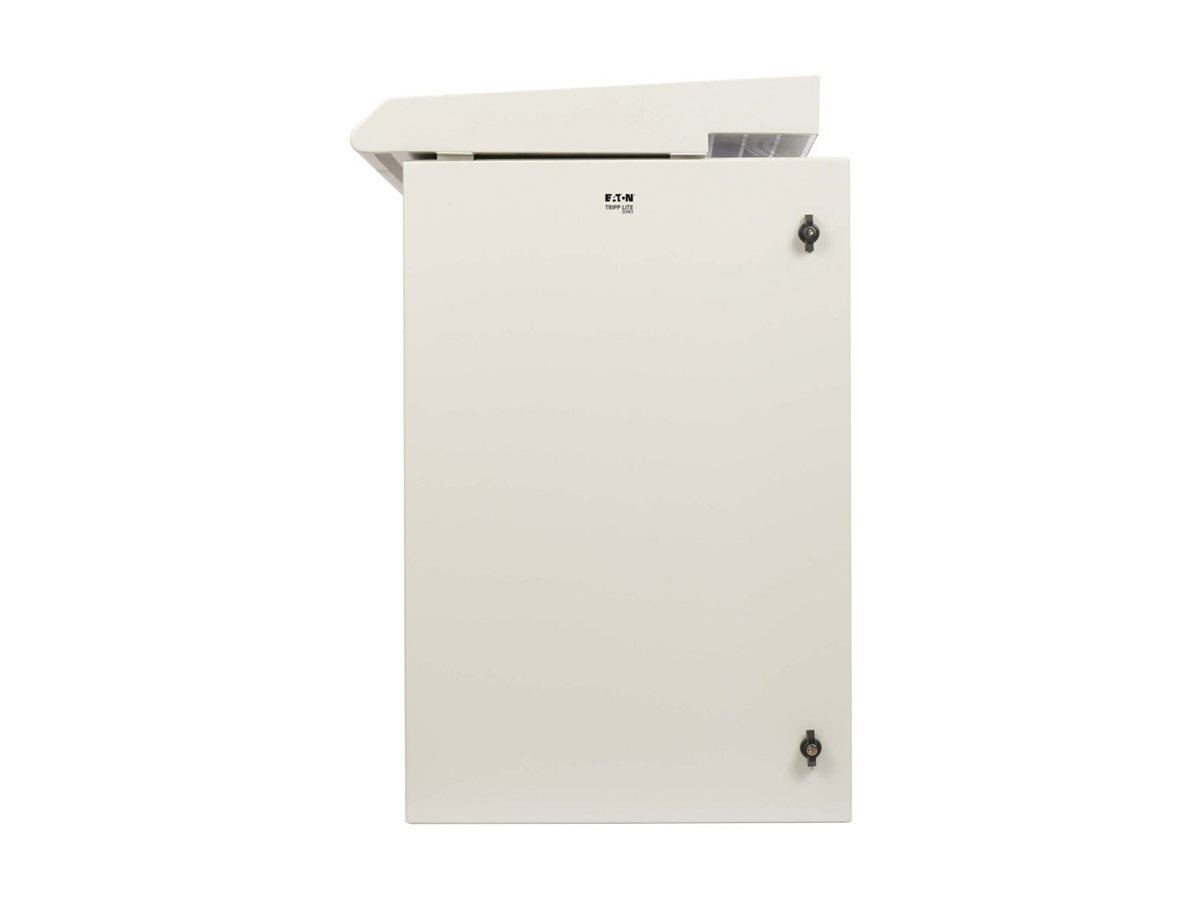

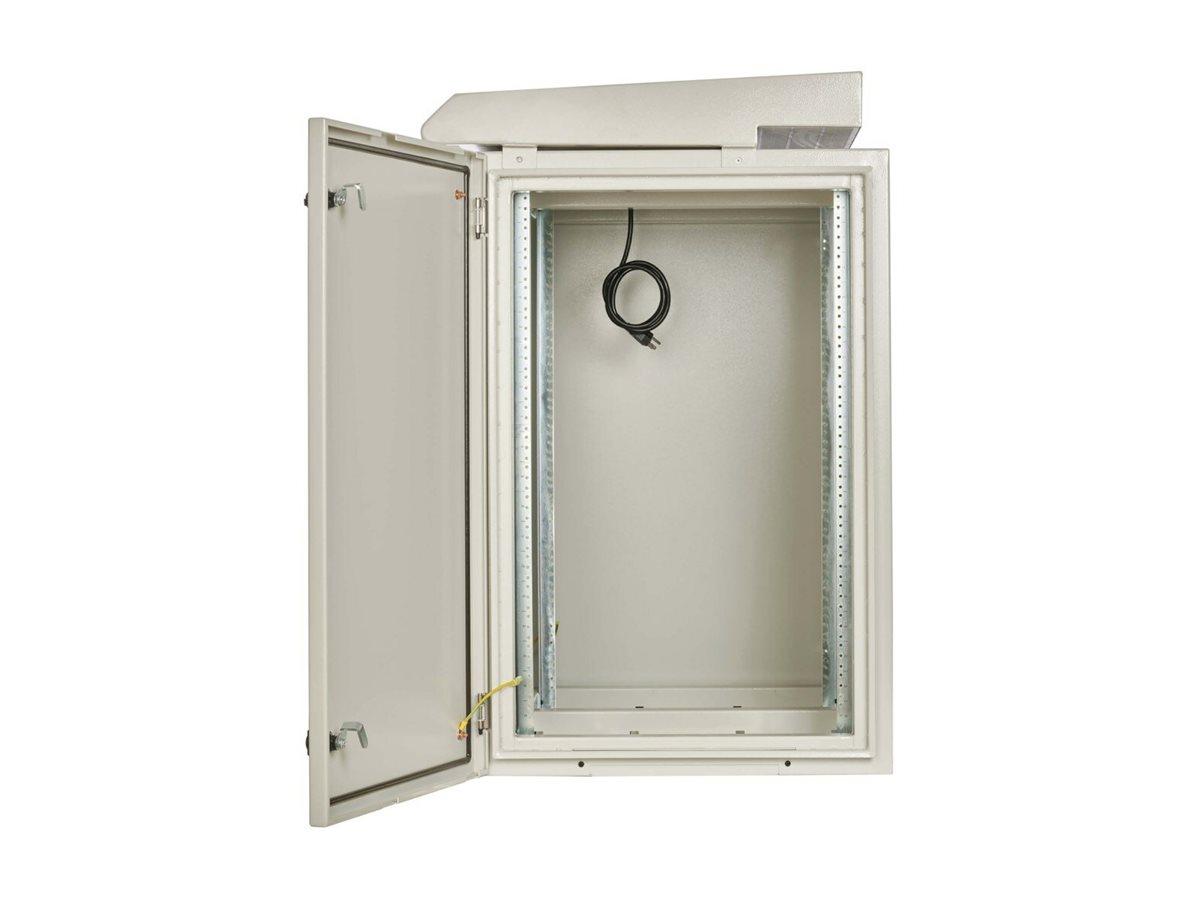

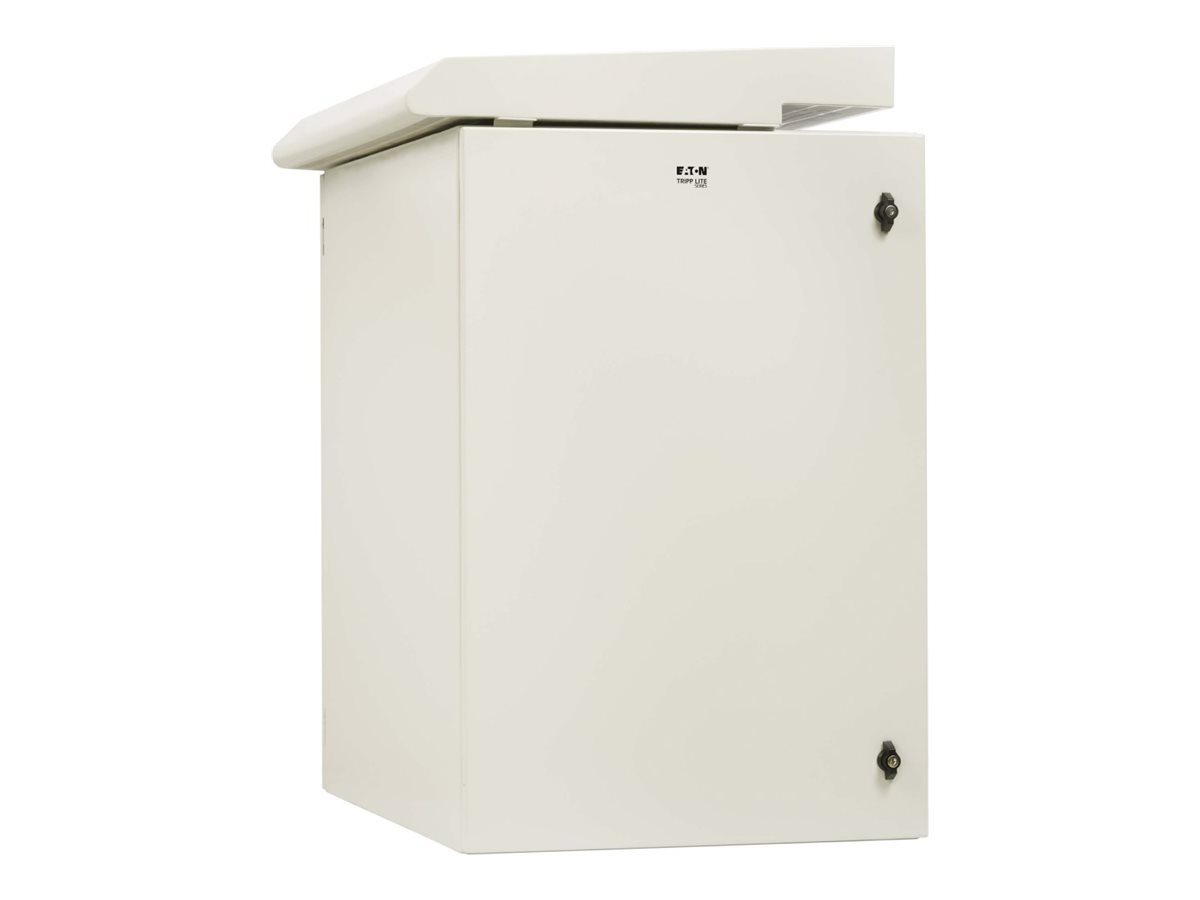

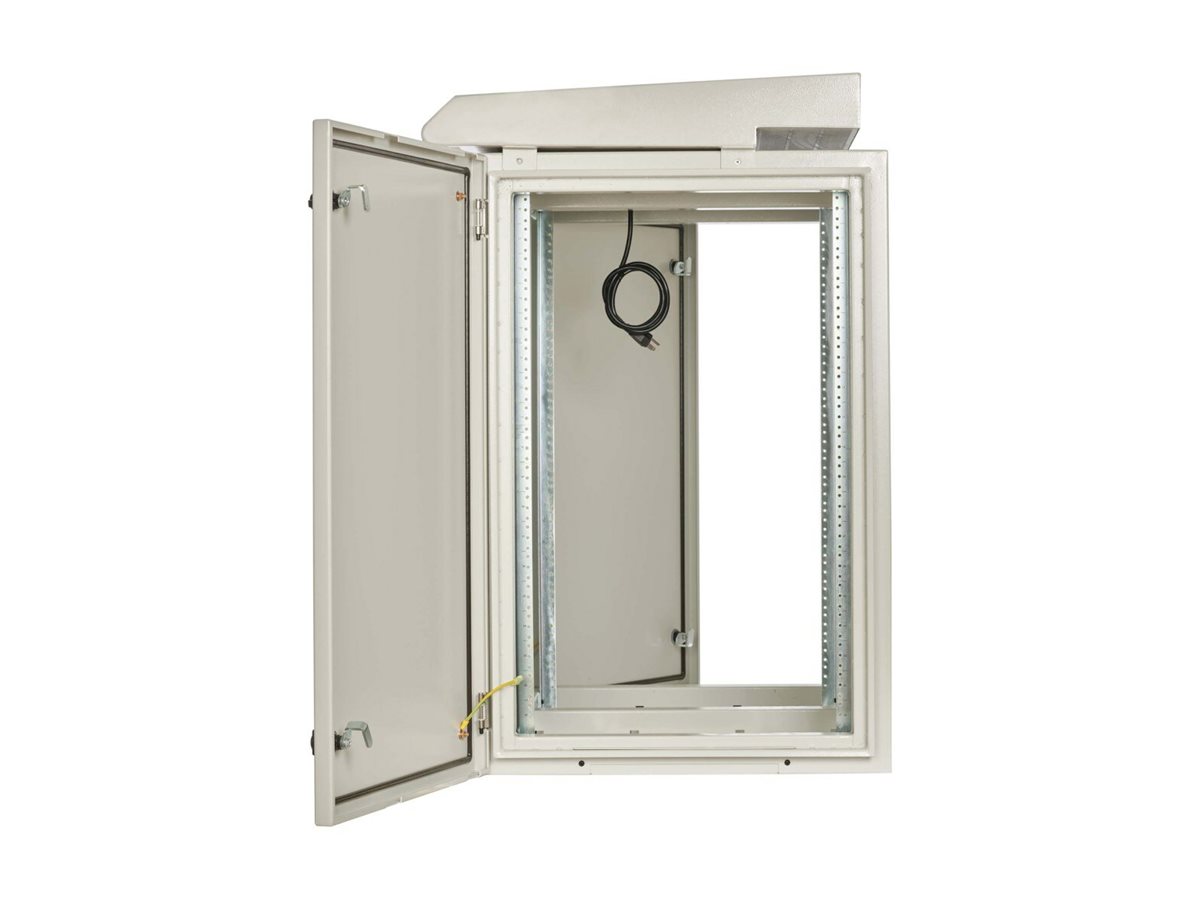

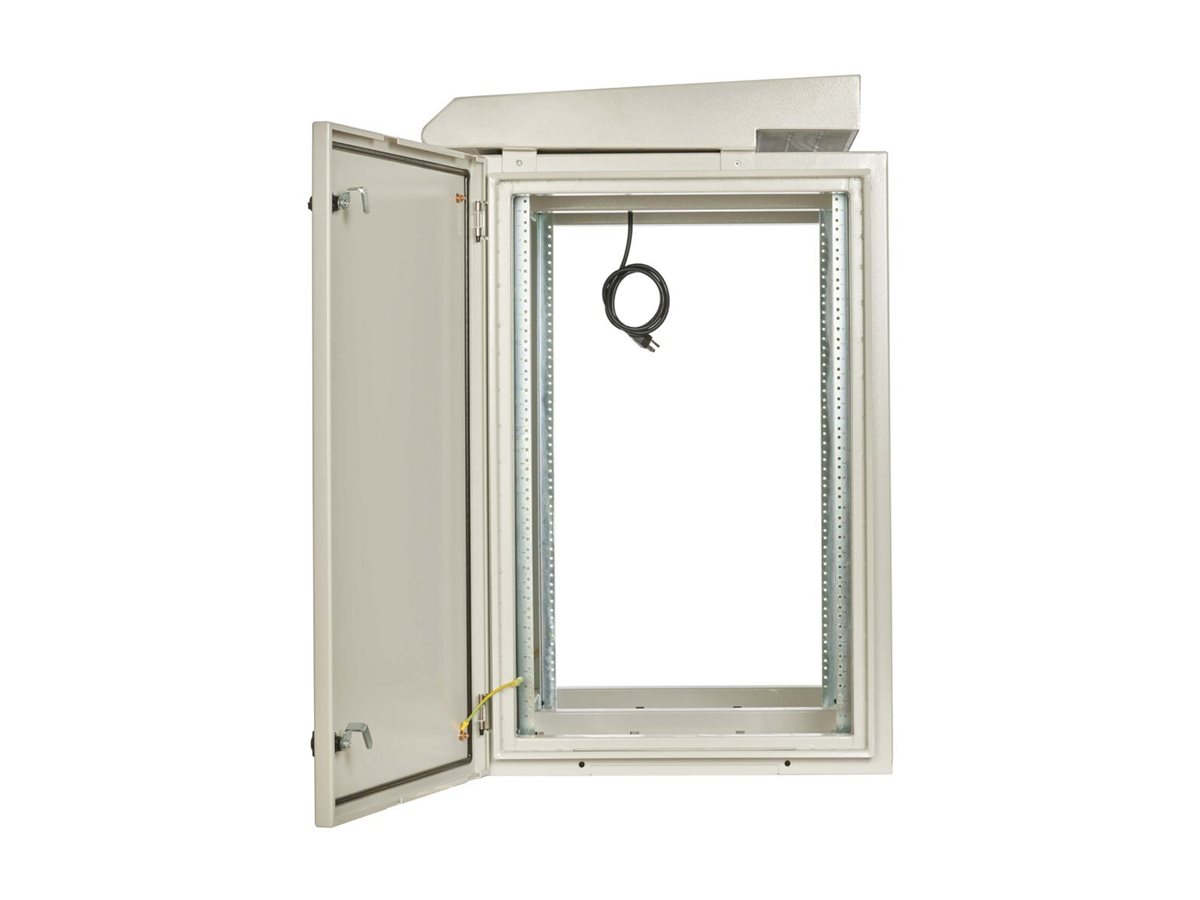

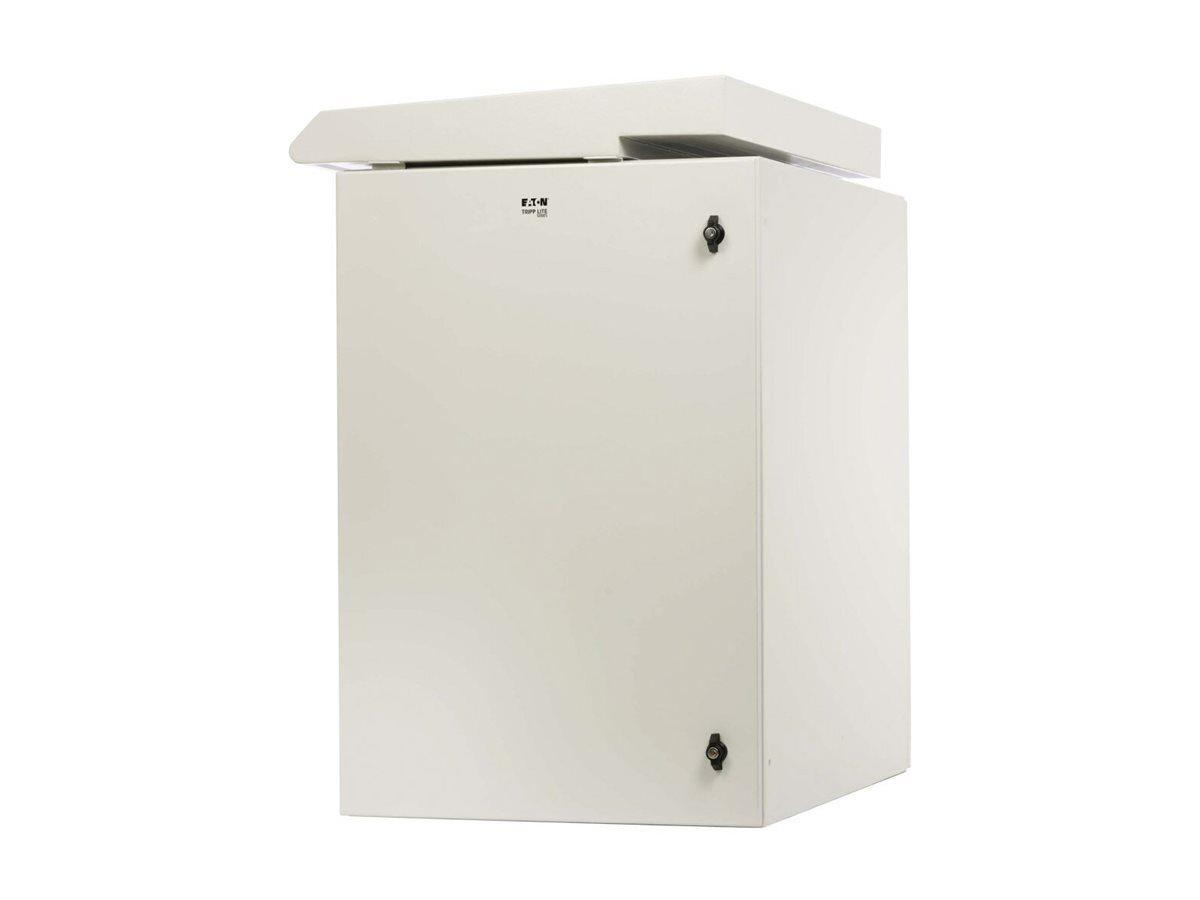

Tripp Lite - Tripp Lite SmartRack Industrial Enclosure with Locks
NEMA 3R, Wall Mount, Heavy-Duty Metal Construction, Internal Fans, 32.5 in. Depth, 18U, Gray - Cabinet - industrial, locking - with 2 cooling fans - wall mountable - AC 120 V - 150 mm - gray - 18U - 19"
Tripp Lite
SRN3RG18UHD
N/A
0037332276919
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite SmartRack Industrial Enclosure with Locks - NEMA 3R, Wall Mount, Heavy-Duty Metal Construction, Internal Fans, 32.5 in. Depth, 18U, Gray - cabinet - industrial, locking - 18U |
| Product Type | Cabinet - industrial, locking |
| Built-in Devices | 2 cooling fans |
| Placing / Mounting | Wall mountable |
| Voltage Required | AC 120 V |
| Package Content | 4 mounting rails, 2 keys, 48 M6 washers, 48 mounting screws (10-32), owner's manual, 6 LDPE sheet metal plugs, 6 M10 foam washers |
| Color | Gray |
| Fans Qty | Dual |
| Fan Diameter | 150 mm |
| Air Flow | 190/210 cfm |
| Features | Aluminum frame, PBT blades |
| Rack Size | 19" |
| Height (Rack Units) | 18U |
| Product Material | Steel |
| Dimensions (WxDxH) | 26.9 in x 36.1 in x 40.3 in |
| Weight | 259.55 lbs |
| Features | Dirt-resistant, rain protection, snow protection, for indoor/outdoor use, water protection, 4 vertical mounting rails, grounding lug, gasketed door, moisture protection, ice protection, 1.83 m input cord |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Cabinet - industrial, locking |
| Built-in Devices | 2 cooling fans |
| Placing / Mounting | Wall mountable |
| Voltage Required | AC 120 V |
| Product Material | Steel |
| Package Content | 4 mounting rails, 2 keys, 48 M6 washers, 48 mounting screws (10-32), owner's manual, 6 LDPE sheet metal plugs, 6 M10 foam washers |
| Rack Size | 19" |
| Height (Rack Units) | 18U |
| Width | 26.9 in |
| Depth | 36.1 in |
| Height | 40.3 in |
| Weight | 259.55 lbs |
| Shipping Dimensions (WxDxH) / Weight | 30 in x 41 in x 45 in / 320 lbs |
| Color | Gray |
| Finish | Powder coat |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 5 years |
| Miscellaneous | |
| Weight Limit | 201 lbs |
| Mounting Kit | Included |
| Features | Dirt-resistant, rain protection, snow protection, for indoor/outdoor use, water protection, 4 vertical mounting rails, grounding lug, gasketed door, moisture protection, ice protection, 1.83 m input cord |
| Compliant Standards | EIA-310-E, NEMA Type 3R, RoHS, REACH, UL 508A, ECA-310-E, CAN/CSA C22.2 No. 286 |
| Interface Provided | |
| Connector Provided | Power NEMA 5-15P |
| Heatsink & Fan | |
| Fans Qty | 2 |
| Fan Diameter | 150 mm |
| Air Flow | 190/210 cfm |
| Features | Aluminum frame, PBT blades |
