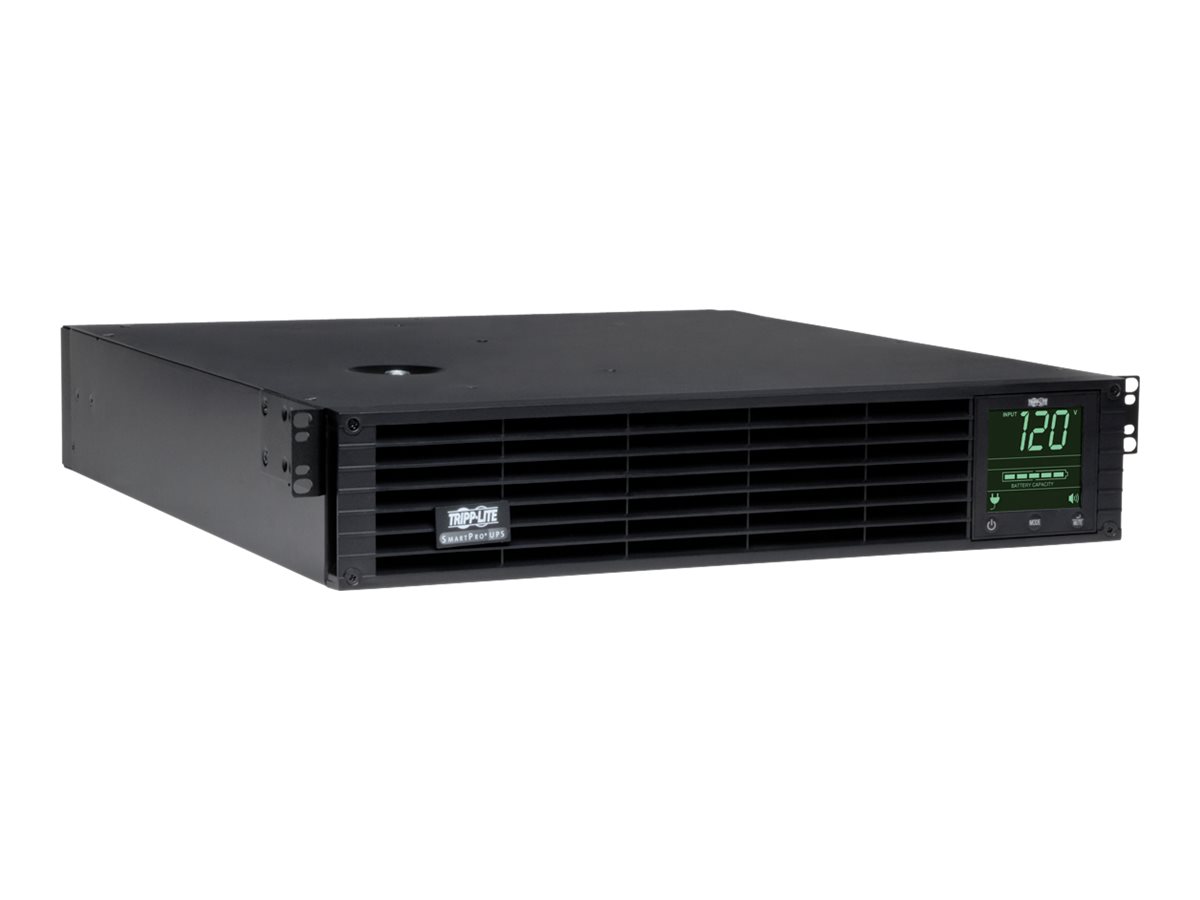

Tripp Lite - Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM
UPS (rack-mountable) - AC 120 V - 1920 Watt - 2200 VA - output connectors: 9 - 2U
Tripp Lite
SMART2600RM2U
N/A
0037332116819
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM - UPS - 1920 Watt - 2200 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Weight | 64.15 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 1920 Watt / 2200 VA |

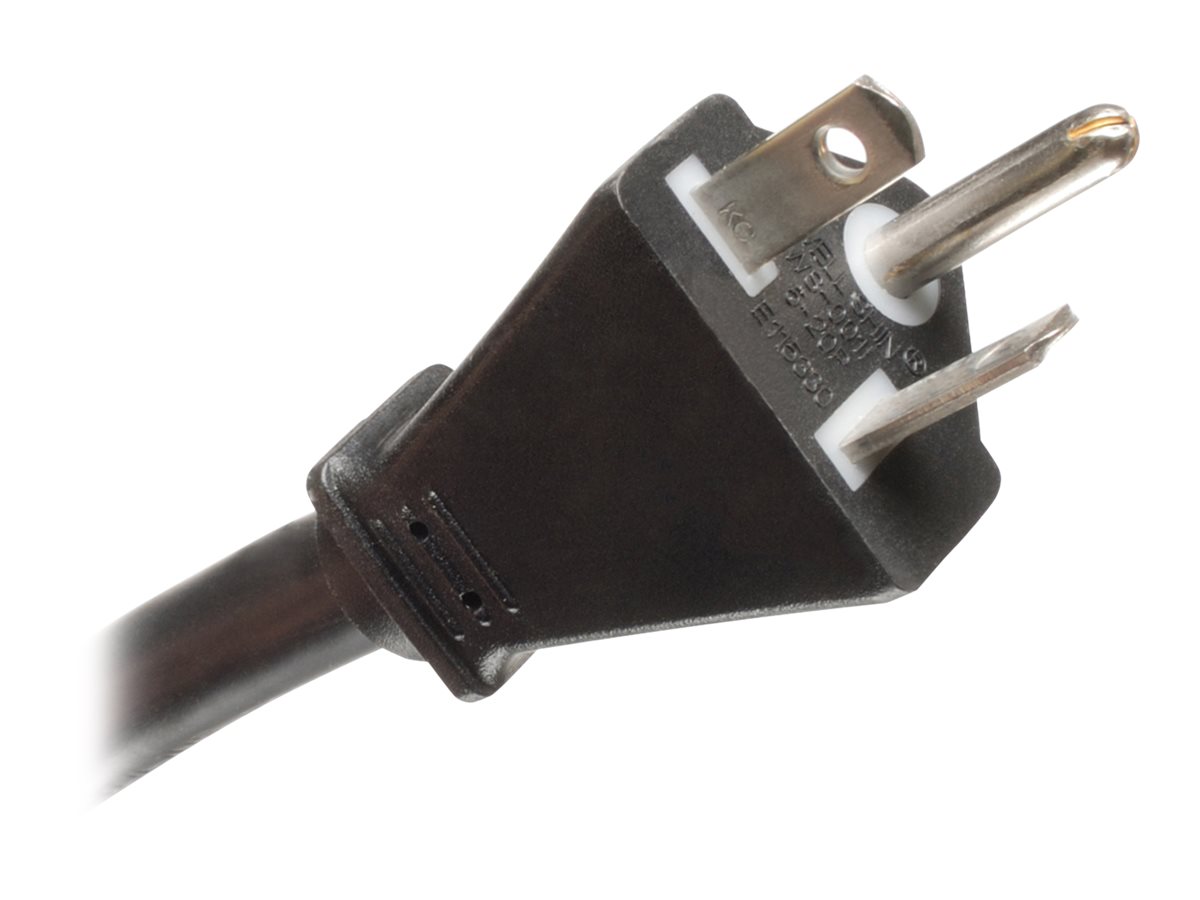

| Input Connectors | 1 x power NEMA 5-20 |
| Output connectors | 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 |
| Battery | Expandable |
| Battery Form Factor | Internal |
| Run Time (Up To) | 4.6 min at full load |
| Dimensions (WxDxH) | 17.5 in x 19 in x 3.5 in |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years with product registration |
| Miscellaneous | |

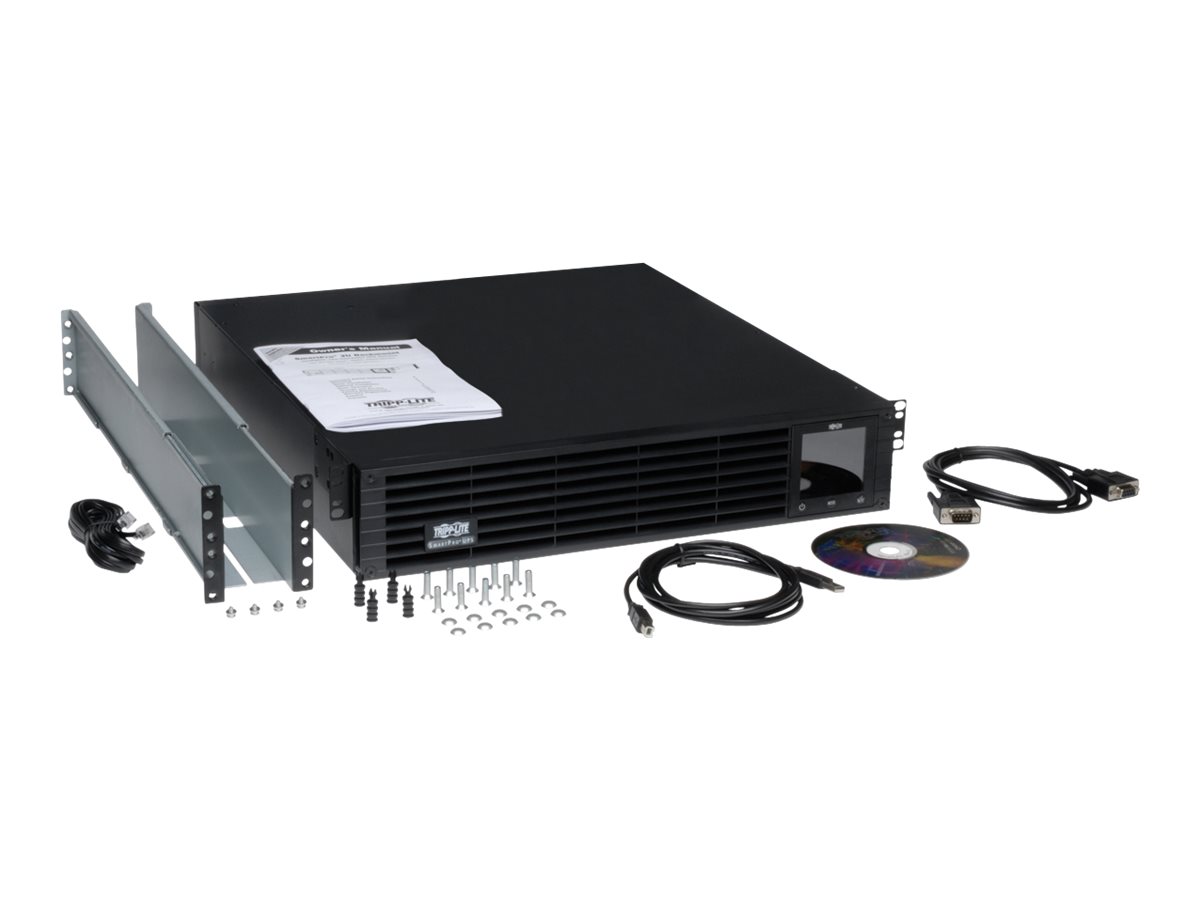

| Cables Included | Power cable - integrated - 10 ft ¦ 2 x USB cable - external ¦ 2 x serial cable - external ¦ Remote control cable - external |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, Automatic Voltage Regulation (AVR) |
| Compliant Standards | FCC Class A certified, cUL, NOM, UL 1778 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Battery | |
| Type | Expandable |
| Voltage Provided | 48 V |
| Run Time (Up To) | 4.6 min at full load |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 105 - 127 V |
| Input Voltage Range (Adjustable) | AC 79 - 147 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 |
| Output Voltage | AC 120 V ± 5% - 60 Hz |
| Power Capacity | 1920 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Energy Rating | 570 Joules |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19 in |
| Height | 3.5 in |
| Weight | 64.15 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 24.2 in |
| Shipping Height | 7.9 in |
| Shipping Weight | 72.09 lbs |
