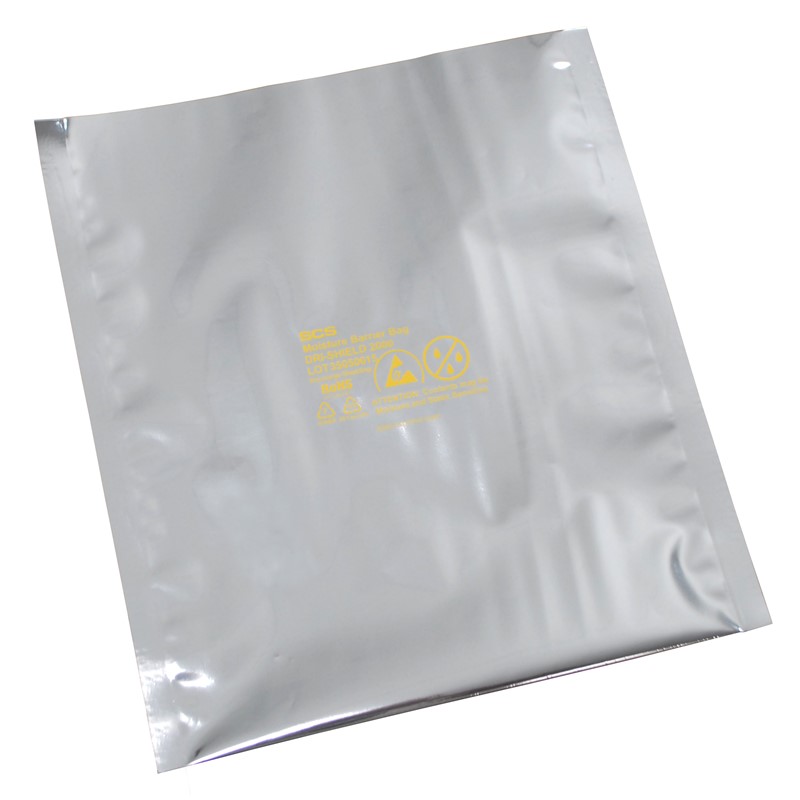

SCS - SCS Dri-Shield® 2000 Series Moisture Barrier Bag, 8" x 10"

100 EA

  • NIJWPSRTRYGRRSJQXLPQ.jpg
SCS
700810
N/A
N/A
N/A
New

Price: $51.12

Total Available: 1

Product Description

  • 0.0036" (3.6 mil) Thick Bag Film laminate constructed from multiple layers of aluminized polyester and polyethylene
    Designed for moisture and electrostatic discharge (ESD) sensitive items (such as SMT). Meets ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, and EIA 583.
  • </= 0.03 Grams Moisture Vapor Transmission Rate (MVTR)
    Designed for dry packing of moisture sensitive devices and to protect contents from damage due to ESD events or EMI.
  • <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31
    Protects contents from ESD charges and discharges. Meets the requirement for discharge shielding per Static Control Bag ANSI/ESD S11.4 Level 3.
  • >20lb Puncture Strength Average
    Provides physical protection for contents.
  • Dissipative Inner and Outer Surfaces Rs 1 x 104 to < 1 x 1011 ohms per ANSI/ESD STM11.11
    Allows bag to be grounded when placed on a grounded surface or handled by a grounded operator.
  • Printed with ESD Protective Symbol and lot code information
    Meets the requirements of ANSI/ESD S541 for quality control purposes.
  • Lead-free RoHS 2, REACH and Conflict Minerals Compliant
  • Made in the United States of America
  • Additional sizes available - Contact Sales Department

Additional Details

What's Included

Specifications

There are no specs available for this product.
